DKコーディング、各瞬間をマーク
| 起源の場所: | 中国上海 |
|---|---|
| ブランド名: | Dikai |
| 証明: | CE, ISO |
| 最小注文数量: | 1 |
| 価格: | $2,700-3,000 |
| プリントヘッド: | 32mm、京セラ; 300dpi | 印書域、印刷域: | 断続：32mm*60mm、連続：32mm*100mm |
|---|---|---|---|
| リボンのサイズ: | 33mm*500m | 印刷頻度: | 断続：最大350ppm、連続：最大40メートル/分 |
| 電源: | AC110〜220V、50/60Hz、150W | 動作温度: | 0-40℃ |
| 相対湿度: | 10％〜95％（非凝縮） | 空気供給: | 6bar/90psi（max）乾燥していない |
| 重さ: | プリントヘッド：8.5kg、コントロールボックス：2.0kg | 寸法: | 印刷ユニット：188mm*190mm*180mm、コントローラーボックス：210mm*180mm*155mm |
| 電圧: | AC100-240V 50/60Hz | 印刷モード: | 断続/連続 |
| 最大リボンの長さ: | 500m | リボン幅: | 22mm〜33mm |
| インタフェース: | USB、RS232、ネットワークインターフェイス | ||
| ハイライト: | AC100-240V Thermal Transfer Overprinter,6bar Air Supply TTO Printer,Long Service Life Barcode Printing Machine |
||

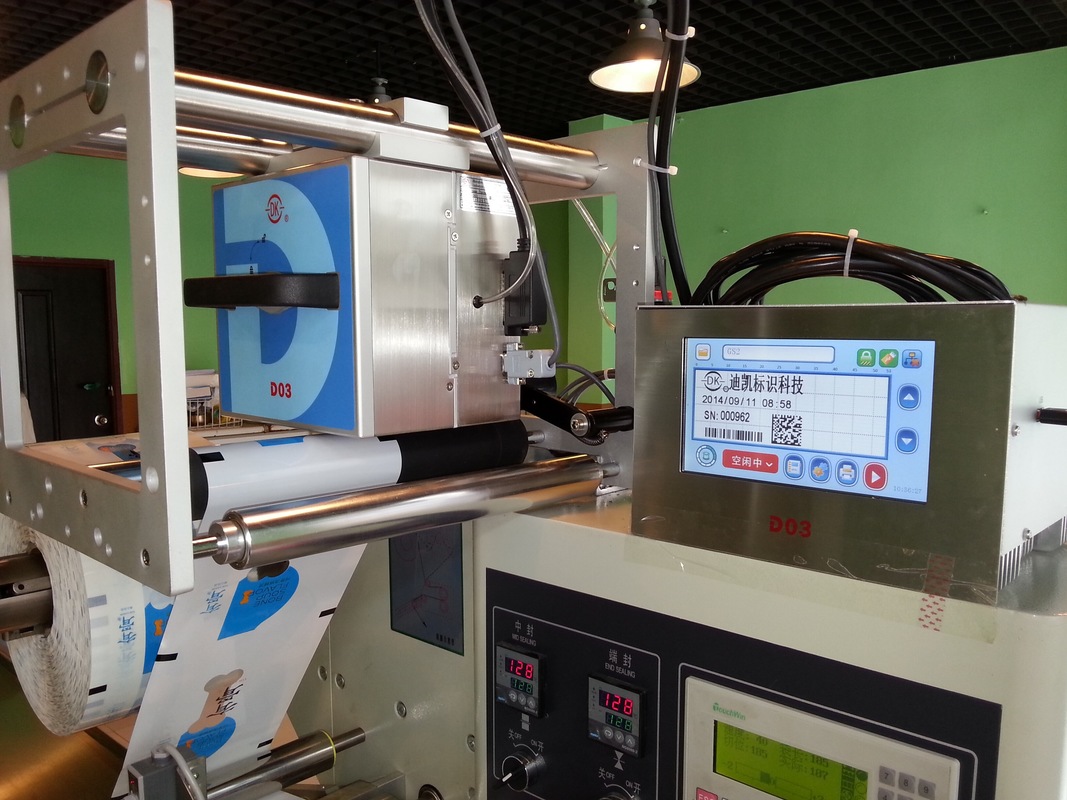

The DIKAI D03S Thermal Transfer Printer was developed through 4 years of dedicated R&D. This versatile machine combines intermittent and continuous printing modes, making it compatible with both horizontal and vertical packing machines. Equipped with a high-resolution 300dpi printhead, the D03S prints barcodes, QR codes, expiration dates, real-time data, graphics, logos, and other variable information directly onto packaging materials. All printing parameters can be adjusted through the intuitive user interface.
| Print Head | 32mm, Kyocera; 300DPI |
|---|---|
| Print Area | Intermittent: 32mm×60mm Continuous: 32mm×100mm |
| Ribbon Size | 33mm×500m |
| Print Frequency | Intermittent: up to 350PPM Continuous: up to 40 meters/minute |
| Power | AC110~220V, 50/60Hz, 150W |
| Operation Temperature | 0-40℃ |
| Humidity | 10%~95% (non-condensing) |
| Air Supply | 6bar/90PSI (MAX) dry uncontaminated |
| Weight | Print head: 8.5kg, Control box: 2.0kg |
| Dimensions | Print Unit: 188×190×180mm Controller box: 210×180×155mm |
Founded in 1995, Shanghai Dikai Coding Industry Co., Ltd specializes in comprehensive coding solutions including R&D, manufacturing, and sales of quality coding machines and consumables such as TTO, Ink Roll Coders, TIJ, CIJ, Laser, and Hot Stamp Coders.
With 16 branch offices and numerous authorized distributors domestically, we serve over 4,000 end users and 200 packaging machine manufacturers. Our products are exported to more than 100 countries worldwide.
With 25 years of experience in developing, manufacturing, and selling quality coding machines and consumables, we are committed to meeting every customer's unique coding and marking requirements.
Standard lead time is 1-2 weeks after order confirmation. Stocked items ship within 2 working days.
Standard warranty is 12 months from leaving our warehouse.
In countries with distributors, we rely on local support networks. We also provide comprehensive online technical support and continuously updated video resources.
