DKコーディング、各瞬間をマーク
| 起源の場所: | 中国上海 |
|---|---|
| ブランド名: | DIKAI |
| 証明: | CE; ISO 9001 |
| 最小注文数量: | 1 |
| 価格: | US$450-600 |
| 電圧: | AC220+10V、50/60Hz | 力: | 130W、2Aヒューズ |
|---|---|---|---|
| 印刷速度: | 最大 300PPM、35 メートル/分 | 印書域、印刷域: | T-Type: ≤13 行、1 行あたり最大 20 文字。 R-Type: ≤10 行、1 行あたり最大 13 文字 |
| 大きさ: | Tタイプ: 2.0T、2.5T、3.0T、2.5*7T; Rタイプ：3.5R、4.5R、5.5R | 袋の長さ: | ≥38mm (4-up プリンター)、≥75mm (2-up プリンター) |
| インクロールサイズ: | 36×32mm、36×35mm、36×40mm | 寸法: | プリンターユニット：120*100*170mm |
| 重さ: | プリントユニット：2KG、コントローラーボックス：1KG | 印刷頻度: | ≤300回/分 |
| 印刷物の内容: | 製造/製造日、ロット番号、シリアル番号など | コアコンポーネント: | PCボード |
| 駆動型タイプ: | 電気 | 自動グレード: | 自動 |
| 包装材料: | 紙 | ||
| ハイライト: | 13 Lines Print Area Hot Ink Roll Coder,AC220V Ink Roll Coder,1 Year Warranty Date Coding Machine |
||

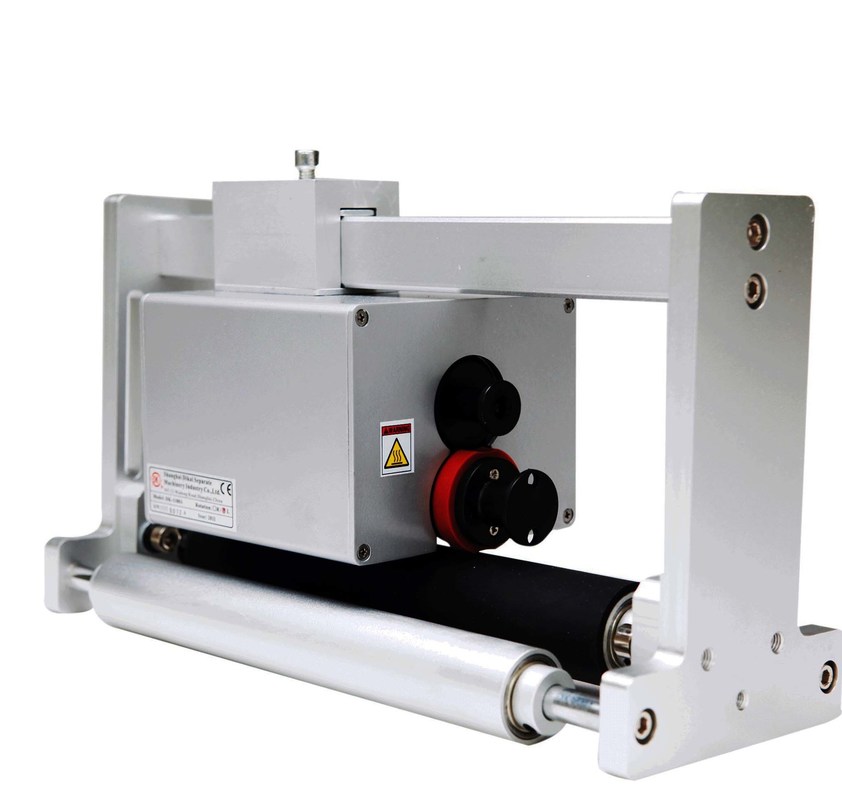

The DK-1100A Ink Roll Coder is an electronic continuous motion coder designed for integration with packing machines, capable of printing at speeds up to 300 PPM. With a print area supporting up to 13 lines, it efficiently prints MFG/EXP dates, lot numbers, and other essential information on flexible packaging films. Widely used in food, daily chemicals, tissue, rice, and seed industries, this reliable model has sold over 100,000 units since its 2011 launch, offering nearly maintenance-free operation for significant cost savings.
| Product Name | DK-1100A Ink Roll Coder |
|---|---|
| Print Area | T-Type (Axial): ≤13 lines, max 20 characters per line R-Type (Radial): ≤10 lines, max 13 characters per line |
| Type Sizes | T-Type: 2.0T, 2.5T, 3.0T, 2.5*7T R-Type: 3.5R, 4.5R, 5.5R |
| Pouch Length | ≥38mm (4-up printer) ≥75mm (2-up printer) |
| Print Frequency | ≤300 times/min |

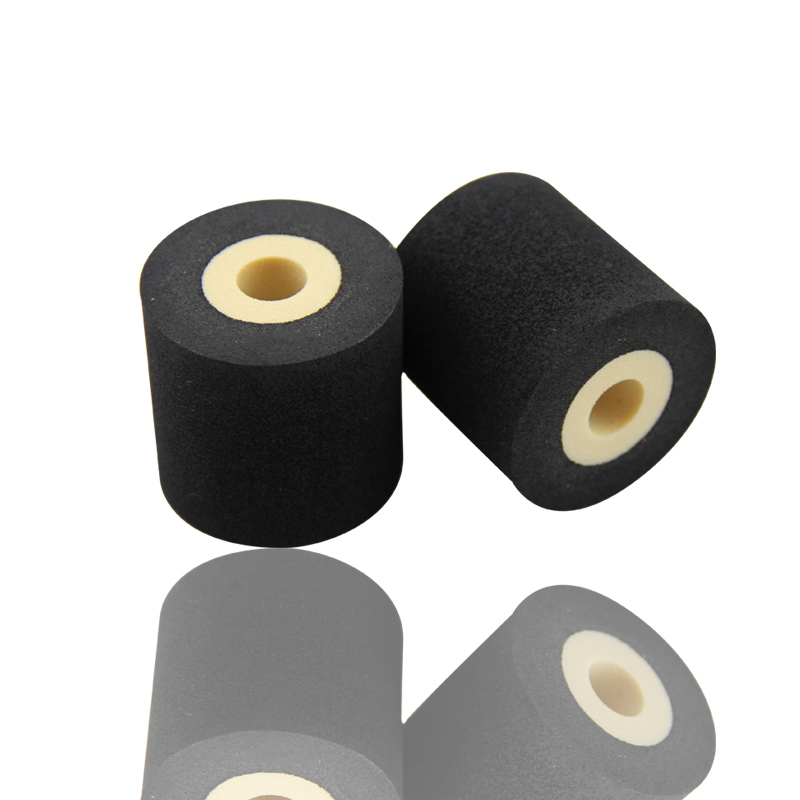

| Ink Roll Required | 36*32mm, 36*35mm, 36*40mm |
| Electricity | AC220+10V, 50/60Hz |
| Power | 130W, 2A fuse |
| Print Speed | Max 300PPM, 35 meters/minute |
| Print Contents | MFG/EXP date, lot number, serial number, etc. |
The carton package is suitable for sea, air, and fast courier shipping.
Our company has dedicated 25 years to developing, manufacturing, and selling quality coding machines and consumables. We are committed to satisfying every customer's unique needs in coding and marking applications.
Standard lead time is 1-2 weeks after order confirmation. For stocked goods, delivery can be made within 2 working days.
Standard warranty is 12 months after leaving Dikai warehouse.
In countries with distributors, we rely on our local partners for after-sales services. Dikai also provides online technical support and continuously upgraded video resources.
