DKコーディング、各瞬間をマーク
| 起源の場所: | 中国上海 |
|---|---|
| ブランド名: | Dikai |
| 最小注文数量: | 1 |
| 価格: | $450-600 |
| 電圧: | AC100～AC230V、50/60Hz | 寸法: | 120×100×170mm |
|---|---|---|---|
| 重さ: | 4 kg | 最高の印刷物の速度: | 300枚/分 |
| 印書域、印刷域: | 最大 13 行、1 行あたり 20 文字 | ヘッドウェイトを印刷します: | 2.0kg |
| 制御箱の重量: | 1.0kg | プリントヘッドの寸法: | 120mm*100mm*170mm (長さ*幅*高さ) |
| 制御箱の寸法: | 180mm*180mm*102mm (長さ*幅*高さ) | 力: | 130Wの2Aヒューズ |
| 温度範囲: | 4℃～40℃ | 表面の速度: | 最大35メートル/分 |
| フォント・サイズ: | T型1.5mm、2.0mm、2.5mm、3.0mm*3.5mm; Rタイプ 3.5mm×3.5mm、4.5mm、5.5mm | インクロールサイズ: | ¢36*40mm |
| 印刷頭型: | 右勝手(時計回り)、左勝手(反時計回り) | ||
| ハイライト: | AC100-AC230V Hot Ink Roll Coder,120 X 100 X 170 mm Ink Roll Coder,1 Year Warranty Expiry Date Printer |
||

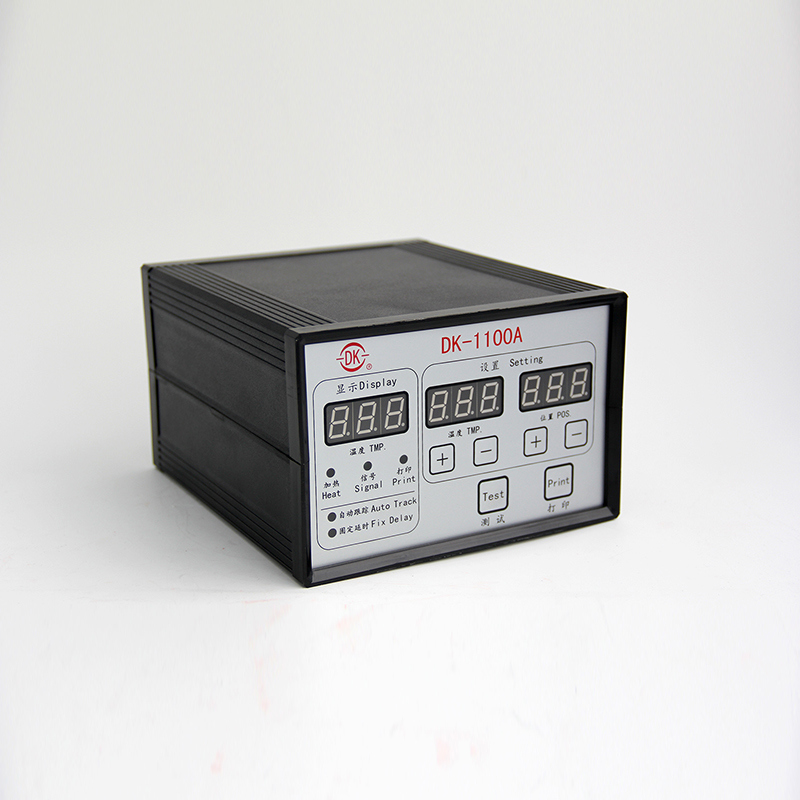

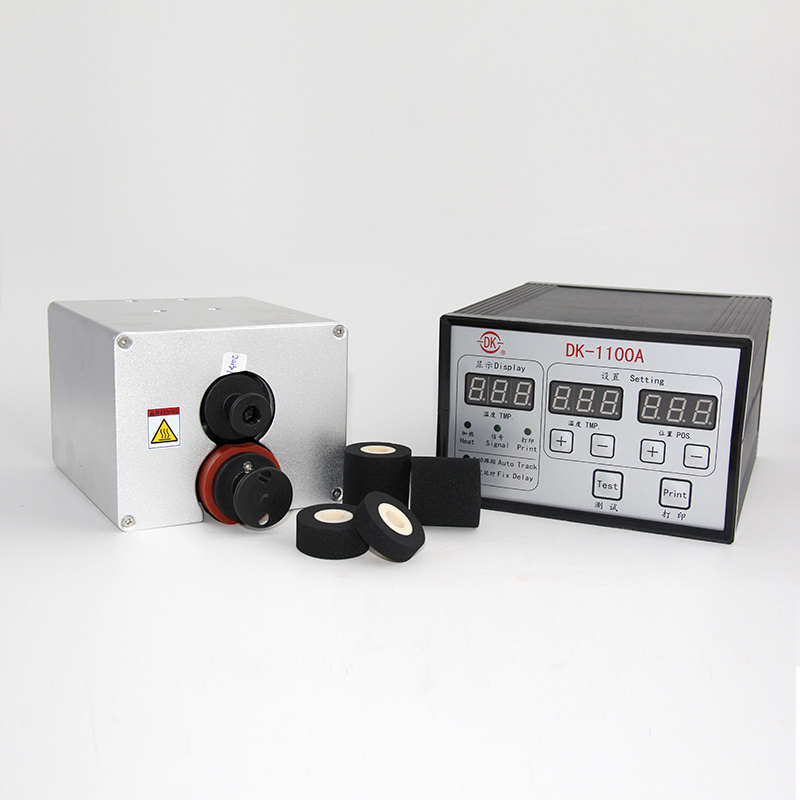

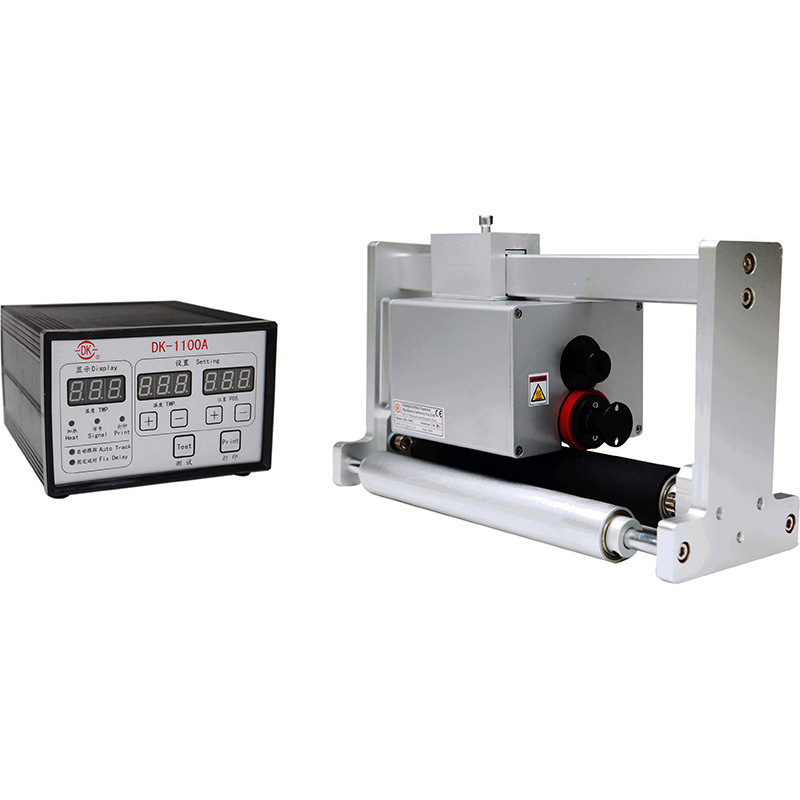

The DIKAI DK-1100A Ink Roll Coder is an electronic continuous motion coder designed for integration with packing machines. This high-performance printer features:
| Print Area | Axial=40mm; Radial=45.5mm |
|---|---|
| Pouch Length | ≥38mm (4-up printer) ≥75mm (2-up printer) |
| Print Lines | T-type (Axial) up to 13 lines, max 20 characters/line R-type (Radial) up to 10 lines, max 13 characters/line |
| Font Size | T-type 1.5mm, 2.0mm, 2.5mm, 3.0mm*3.5mm R-type 3.5mm*3.5mm, 4.5mm, 5.5mm |
| Print Speed | Up to 300 prints/minute |
| Surface Speed | Up to 35 meters/minute |
| Weight | Print Head 2.0kg Control box 1.0kg |
| Dimensions | Print Head 120mm*100mm*170mm (L*W*H) Control Box 180mm*180mm*102mm (L*W*H) |
| Ink Roll Required | ¢36*40mm |
| Electrical | AC100-230V, 50/60Hz |
| Power | 130W, 2A Fuse |
| Temperature Range | 4°C-40°C |
The carton package is suitable for sea, air, and fast courier shipping.
Our company has dedicated 25 years to developing, manufacturing, and selling quality coding machines and consumables. We are committed to satisfying every customer's unique needs in coding and marking applications.
Standard lead time is 1-2 weeks after order confirmation. For stocked goods, delivery can be made within 2 working days.
Standard warranty is 12 months after leaving Dikai warehouse.
For countries with distributors, we rely on our distributor network for after-sales services. Dikai also provides online technical support and continuously upgraded video support materials.
