DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding

Automatic Thermal Transfer Overprinter

53mm Printhead TTO Printer

300 DPI Coding Machine

起源の場所:

中国上海

ブランド名:

DIKAI

証明:

CE, ROHS, MSDS

お問い合わせ

引金を求めてください

DIKAI D05S Automatic Thermal Transfer Overprinter with 53mm Printhead and 300 DPI for High-Quality Coding

製品詳細

ヘッド幅を印刷します:

53mm

印刷解像度:

300dpi

最高の印書域、印刷域:

53mm*150mm

印刷速度:

2-36 m/分

電圧:

AC 220V/50Hz 110V/60Hz

電源:

AC100-240V 50/60Hz

空気供給:

6bar/90psi（最大）

寸法:

188*190*180mm

重さ:

16kg

印刷周波数断続:

300ppmまで

印刷周波数が連続しています:

最大30ppm

消費電力:

150W

動作温度:

0-40℃

相対湿度:

10%~95%

インタフェース:

USB,RS232

ハイライト:

Automatic Thermal Transfer Overprinter

53mm Printhead TTO Printer

300 DPI Coding Machine

支払いと配送条件

最小注文数量

価格

$3,200-3,500

受渡し時間

5～8営業日

プラスチックバッグデジタル熱伝送印刷機 300ppm 150W

最高の価格を入手する

ビデオ

53mmの印字ヘッドによって機械AC 110Vをコードする端の熱移動オーバープリンターの近く

最高の価格を入手する

ポリ袋のためのバーコードのスタンププリンター機械300 DPI 32mm印字ヘッド

最高の価格を入手する

QRコード150W熱移動オーバープリンター/空気の印字機

最高の価格を入手する

お問い合わせ

今連絡してください

商品の説明

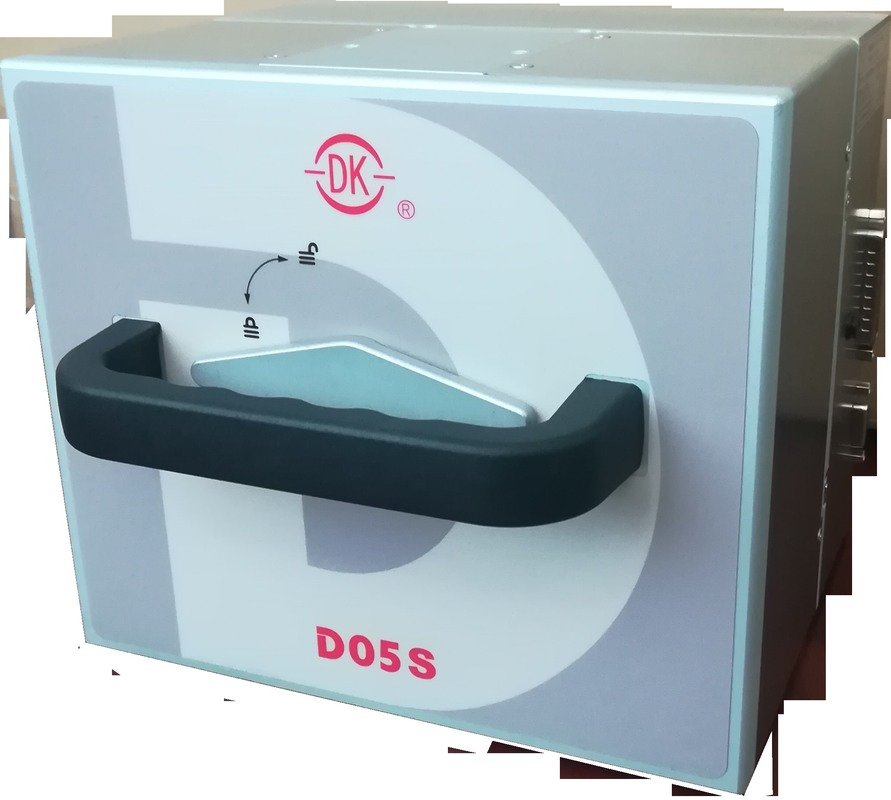

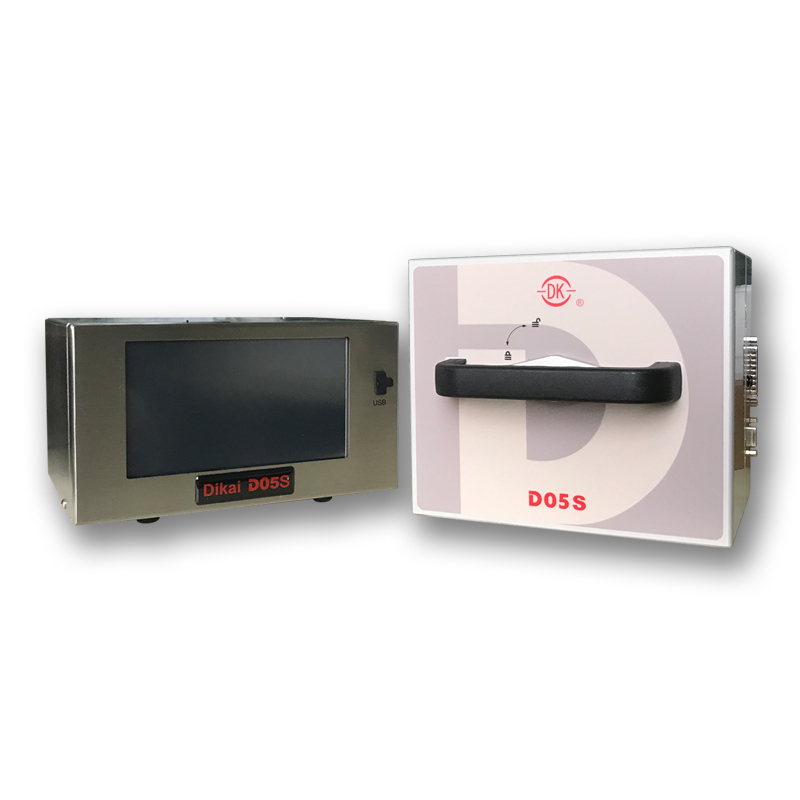

DIKAI D05S TTO PRINTER

The D05S Thermal Transfer Overprinter with 53mm printhead is one of the most cost-effective smart coding machines available. It enables manufacturers to manage and utilize production data for identification, verification, product promotion, and logistic tracing. These solutions are widely applied across multiple industries including food, paper making, medicine, seeds, medical equipment, cosmetics, daily tissue, daily chemicals, and wood industry.

Available in two configurations: Right hand machine and Left hand machine.

Key Features

Continuous & Intermittent printing modes
53mm Kyocera Printhead with 300 DPI resolution
Real-time and variable data printing capability
Low operational cost
User-friendly operation

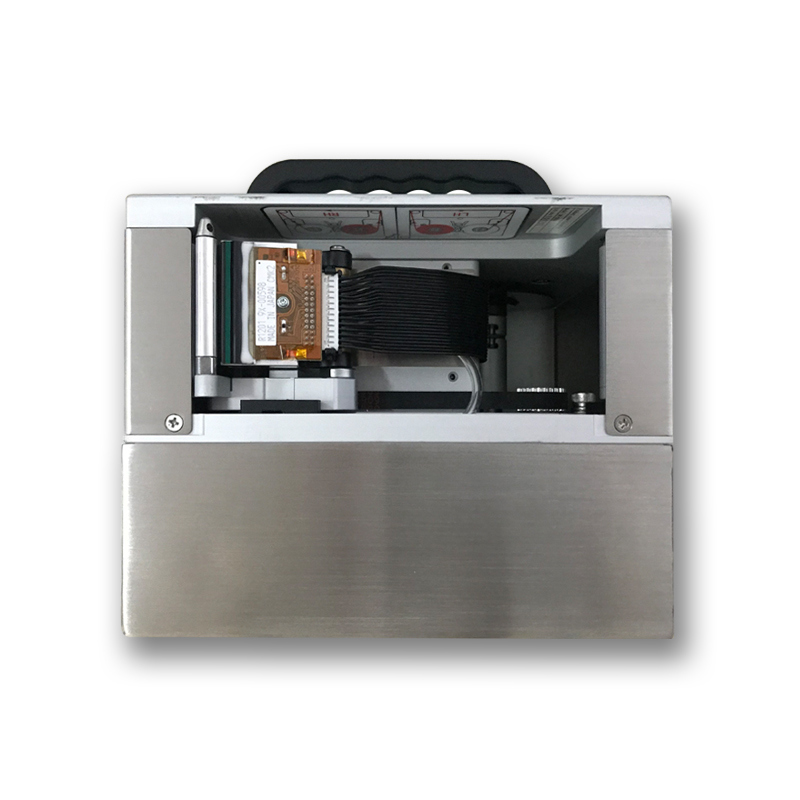

53mm Printhead

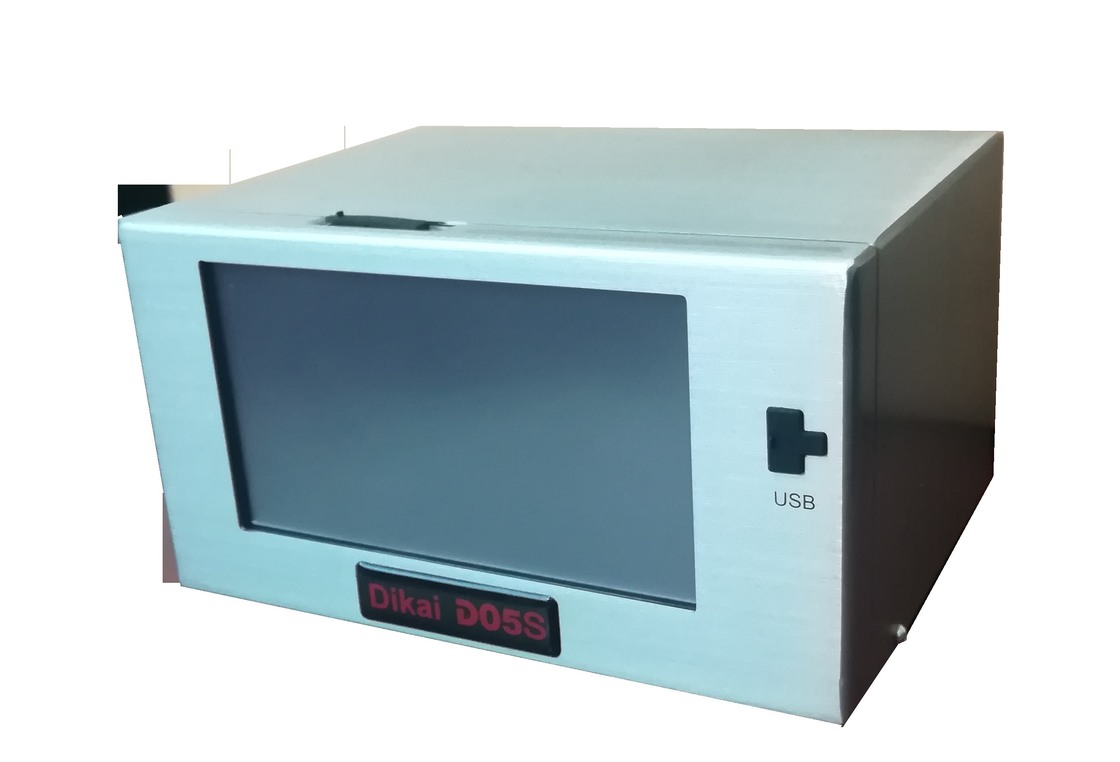

Interface

Technical Specifications

Print Head	53mm, Kyocera; 300DPI
Print Area	Intermittent: 53mm70mm Continuous: 53mm150mm
Ribbon Size	55mm*600m
Print Frequency	Intermittent: up to 300PPM Continuous: up to 30PPM
Power	150W
Operation Temperature	0-40℃
Relative Humidity	10%~95% (non-condensing)
Air Supply	6bar/90PSI (MAX) dry, Clean
Weight	Print head: 8.5kg Control box: 2.0kg
Dimensions (LWH)	Print Unit: 210mm210mm185mm Controller box: 233mm180mm128mm

Note: The prices shown on Alibaba are not final prices. Please consult us for proper solutions tailored to your requirements.

Packaging & Shipping

Standard export cartons with protective sponge interior
Suitable for sea, air, or courier shipping
Customized packing available per customer requirements

After Sales Service

Technical Support

R&D support
Operation manual guidance
24-hour professional online support
Video support resources
Possible onsite support

Frequently Asked Questions

1. Why choose Dikai?
With 25 years of experience in development, manufacturing, and sales of quality coding machines and consumables, we are committed to satisfying every customer's unique needs in coding and marking applications.

2. What's the regular lead time for Dikai products?
Standard lead time is 1-2 weeks after order confirmation. Stocked items can be shipped within 2 working days.

3. What's the warranty for Dikai products?
Standard warranty is 12 months from date of leaving Dikai warehouse.

4. How about your after-sales service?
In countries with distributors, we rely on local partners for service. Dikai also provides online technical support and continuously upgraded video resources.

About Shanghai Dikai Coding Industry Co., Ltd

Founded in 1995, Shanghai Dikai Coding Industry Co., Ltd is a comprehensive coding solutions provider specializing in R&D, innovation, manufacturing, sales, and service of quality coding machines and consumables including TTO, Ink Roll Coder, TIJ, CIJ, Laser, Hot Stamp Coder, Carton Coding Machine, Ink Roll, and Ribbon products.

Headquartered in Shanghai, China, we operate 16 branch offices and numerous authorized distributors domestically, serving over 4,000 end users and more than 200 packaging machine manufacturers. Our products have been exported to more than 100 countries and regions since 2006.

DIKAI Vision: To be renowned ID system integrator in the world
DIKAI Values: Customer's benefit comes first
